DELL POWEREDGE-1950
DELL PowerEdge-1950 Full Specifications

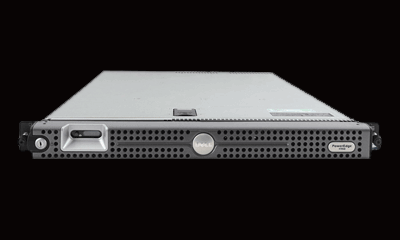

In a 1U form factor, the Dell
PowerEdge 1950 delivers the right combination of computing power and redundancy in an ultra-dense chassis.
With dual-processor performance, next generation manageability and platform commonality, it is ideal for edge-of-network, infrastructure, SAN front-end, thin client
server and High Performance Computing Clusters (HPCC) applications.
General Details
| Manufacturer |
DELL |
| Model |
DELL PowerEdge 1950 |
| Type |
Server |
| Form Factor |
1U Rack Mountable |
| |
|
Processor / Chipset
| Processor Family |
Intel Xeon |
| Processor Model |
Intel Xeon 5300, 5100, 5000 |
| Maximum Number of Processors |
2 Processor |
| Processor number of Cores |
2 Quad Core or 2 Dual Core |
| Motherboard Chipset |
Intel 5000X |
| |
|
Memory / Cache Memory
| Internal Memory |
Upto 32GB Fully Buffered DIMMs (FBD) |
| Memory Slots |
8 |
| Memory Layout |
8 x (256MB/512MB/1GB/2GB/4GB) FBDs |
| Cache Memory |
L2 Cache 8 MB Memory |
| |
|
Internal / External Storage
| Number of Hard Drives Supported |
2 hard drive base options |
| Hard Drives |
2.5” SAS (10K RPM): 36GB, 73GB;
or 3.5” SAS (10K RPM): 73GB, 146GB, 300GB, or 400GB;
or 3.5” SAS (15K RPM): 36GB, 73GB, 146GB;
or 3.5” SATA (7.2K RPM): 80GB, 160GB, 250GB, 500GB, 750GB SATA |
| Maximum Internal Storage |
Up to 600GB: two 300GB hot-plug 3.5" SAS (10K RPM);
Up to 1.5TB: two 750GB hot-plug 3.5" SATA (7.2K RPM) |
| External Storate |
Dell PowerVault 22xS, PowerVault MD1000, Dell/EMC products |
| RAID Support |
Integerated RAID 6, Optional RAID 5 |
| |
|
Optical Drive
| Optical Drive Type |
CD-RW / DVD-ROM |
| |
|
Graphics Controller
| Graphic Adapter Family |
ATI ES1000 |
| Model |
Integrated ATI ES1000 |
| Maximum Graphic Adapter Memory |
16 MB DDR Memory |
| |
|
I/O & Networking
| Expansion Slots |
Two slots on separate PCI buses with either PCI Express riser with two x8 lane slots
or PCI-X riser with 2 x 64-bit/133MHz slots |
| Network Cotroller |
Integrated Dual-Gigabit Ethernet |
| |
|
Power
| Device Type |
Hot-Plug |
| Power |
670W, optional hot-plug redundant power (1+1) |
| |
|
Operating System / Software
| Operating System Installed |
Yes |
| Supporting Operating Systems |
Microsoft Windows Server 2003, Microsoft Windows Storage Server 2003, Red HatLinux Enterprise, SUSE Linux Enterprise Server |
| |
|
Miscellaneous
| Features |
Lockable,
LCD display, Dell OpenManage System Management , Embedded ATI ES1000 with 16MB memory Video Support |
| Compilant Standards |
IEC 60950-1, ICES-003 Class A, EN55024, CCC, VCCI, EN 61000-3-2, UL 60950-1, MIC Class A, EN 60950-1, CSA C22.2 No. 60950-1-03, SABS, EN55022 Class A, EN 61000-3-3, FCC Class A certified, C-Tick Class A, BSMI |
| |
|
