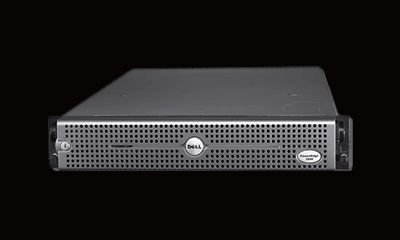

DELL POWEREDGE-2950
DELL PowerEdge-2950 Full Specifications
In a rack-optimized 2U form factor, the Dell Poweredge 2950 server delivers an excellent balance of outstanding
performance, availability and flexibility for growing network infrastructure applications as well as web, messaging,
database and file/print consolidation.
General Details
| Manufacturer |
DELL |
| Model |
DELL PowerEdge 2950 |
| Type |
Server |
| Form Factor |
2U Rack Mountable |
| |
|
Processor / Chipset
| Processor Family |
Intel Xeon |
| Processor Model |
Intel Xeon 5300, 5100, 5000 |
| Maximum Number of Processors |
2 Processor |
| Processor number of Cores |
2 Quad Core or 2 Dual Core |
| Motherboard Chipset |
Intel 5000X |
| |
|
Memory / Cache Memory
| Internal Memory |
Upto 32GB Fully Buffered DIMMs (FBD) |
| Memory Slots |
8 |
| Memory Layout |
8 x (256MB/512MB/1GB/2GB/4GB) FBDs |
| Cache Memory |
12 MB Cache Memory |
| |
|
Internal / External Storage
| Number of Hard Drives Supported |
3 hard drive base options |
| Hard Drives |
2.5” SAS (10K RPM): 36GB, 73GB;
or 3.5” SAS (10K RPM): 73GB, 146GB, 300GB, or 400GB;
or 3.5” SAS (15K RPM): 36GB, 73GB, 146GB;
or 3.5” SATA (7.2K RPM): 80GB, 160GB, 250GB, 500GB, 750GB SATA |
| Maximum Internal Storage |
Up to 4.5TB: six 750GB hot-plug SATA (7.2 K RPM) |
| External Storate |
SAS, SCSI and fibre channel storage systems |
| RAID Support |
Integerated RAID 6, Optional RAID 5 |
| |
|
Optical Drive
| Optical Drive Type |
CD-RW / DVD-ROM |
| |
|
Graphics Controller
| Graphic Adapter Family |
ATI ES1000 |
| Model |
Integrated ATI ES1000 |
| Maximum Graphic Adapter Memory |
16 MB DDR Memory |
| |
|
I/O & Networking
| Expansion Slots |
Three PCI slots, either PCIe riser with three PCI Express slots (one x4 (x8 connector)
and two x8) or two PCI-X 64-bit/133MHz and one PCI Express x8 slot |
| Network Cotroller |
Integrated Dual-Gigabit Ethernet |
| |
|
Power
| Device Type |
Hot Plug with auto switching |
| Power Supply |
Dual Power Supply 750W, 110/220V AC, DC -48 to -60 V20 |
| |
|
Operating System / Software
| Operating System Installed |
Yes |
| Supporting Operating Systems |
Microsoft Windows Server 2003,
Microsoft Windows Storage Server 2003,
Red HatLinux Enterprise,
SUSE Linux Enterprise Server |
| |
|
Miscellaneous
| Features |
Dell OpenManage System Management , Embedded ATI ES1000 with 16MB memory Video Support |
| |
|
