HP DL580 G2
HP DL580 G2 Full Specifications

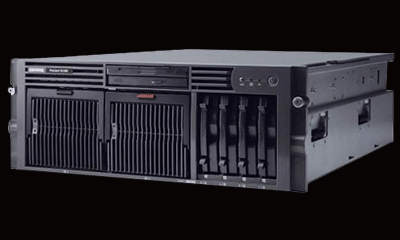

The HP ProLiant DL580 G2 Storage Server is a high per-formance network attached storage (NAS) gateway
solution delivering quick and simple storage with multi-protocol file support and storage management for the
most demanding enterprise and workgroup environments. The DL580 Storage Server is a NAS/SAN fusion storage
solution that requires only limited IT knowledge, offers ease of installation and management features that reduce
overall total cost of ownership (TCO).
The DL580 Storage Server is ideal for organizations that require quick, simple, rapidly deployable, flexible storage with built-in
remote manageability. The DL580 Storage Server uses the Microsoft Windows Storage Server 2003 operating sys-tem. It provides excellent storage management, data
protection, performance tuning and print services, allow-ing customers to mange their storage efficiently. Plus, it
comes with HP Global Services, providing cost-effective support to ensure continuous availability.
General Details
| Manufacturer |
HP |
| Model |
HP DL380 G2 |
| Type |
4U ( Rack Mountable ) |
| |
|
Processor / Chipset
| Processor Family |
Intel Xeon |
| Processor Model |
Intel Xeon Dual 2.8 GHz Processor |
| Maximum Number of Processors |
4 |
| Processor number of Cores |
Dual Core |
| Motherboard Chipset |
ServerWorks Grand Champion HE |
| |
|
Memory / Cache Memory
| Internal Memory |
Up to 32 GB DDR SDRAM Memory |
| Memory Slots |
16 |
| Memory Layout |
16 x 2 GB |
| Cache Memory |
L3 Cache Memory |
| Cache Memory Size |
512 kB |
| |
|
Internal / External Storage
| Maximum Storage Capacity |
Up to 100 TB |
| RAID Support |
RAID 0, 1, 0+1, 5 ( dependent on array ) |
| |
|
Optical Drive
| Optical Drive Type |
CD-ROM |
| |
|
Graphics Controller
| Graphic Adapter Family |
PCI |
| Model |
Integrated PCI |
| Maximum Graphic Adapter Memory |
8 MB SDRAM |
| |
|
I/O & Networking
| Expansion Slots |
6 PCI-X |
| Network Cotroller |
Integrated GigaBit Ethernet Card |
| |
|
Power
| Device Type |
Hot - Plug |
| Power Supply |
Dual Redundant Power Supply 800 Watt, AC 120/130 V ( 50/60 Hz ) |
| |
|
Environmental Parameters
| Min Operating Temperature |
50°F |
| Max Operating Temperature |
95°F |
| Huimdity Range Operating |
20 to 80% relative humidity (Rh), non-condensing |
| |
|
Operating System / Software
| Operating System Installed |
Yes |
| Supporting Operating Systems |
SuSE Linux Enterprise Server 7, Microsoft Windows 2000 Server, Microsoft Windows NT Server 4.0 Enterprise Edition,
Red Hat Linux 7.2, Microsoft Windows 2000 Advanced Server, Novell NetWare 5.1,
Microsoft Windows NT Server 4.0, Novell NetWare 6, Microsoft Windows NT Server 4.0 Terminal Edition |
| |
|
Miscellaneous
| Features |
Disk configuration lock, Keyboard password, Power-on password,
Administrator password,Diskette I/O control, Serial port I/O control, Wake on LAN
|
| Compilant Standards |
ACPI 2.0 |
| |
|
