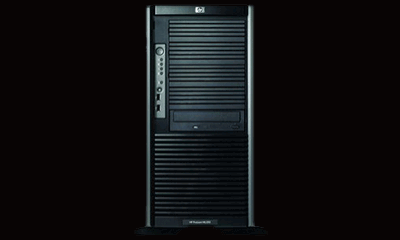

HP ML350 G5
HP ML350 G5 Full Specifications
Building on a tradition of excellence, the HP ProLiant family introduces the fifth generation HP ProLiant ML350 server. The HP ProLiant ML350 G5 server provides Multi-Core performance, enterprise level management, and highly available redundant options in a modular server form factor. New for this generation is a smaller and quieter chassis, embedded Smart Array E200i Controller and 5 media bays.
General Details
| Manufacturer |
HP |
| Model |
HP ML350 G5 |
| Type |
Tower Server 5U ( Rack Mountable ) |
| |
|
Processor / Chipset
| Processor Family |
Intel Xeon |
| Processor Model |
Intel Xeon Dual Core 5150 2.66 GHz |
| Maximum Number of Processors |
2 |
| Processor number of Cores |
Dual Core and Quad Core |
| Motherboard Chipset |
Intel 5000Z Chipset |
| |
|
Memory / Cache Memory
| Internal Memory |
Up to 32 GB ( DDR2 667 ) |
| Memory Slots |
8 |
| Cache Memory |
L2 Cache Memory |
| Cache Memory Size |
4MB, 6MB, 8MB, 12MB |
| |
|
Internal / External Storage
| Number of Hard Drives Supported |
Up to 8 or 6 SCSI/SATA HDD |
| Maximum Internal Storage |
6 TB |
| External Storage |
Up to 4 HP 2000sa Modular
Smart Array Controller
|
| RAID Support |
Integrated Raid 0,1,5 |
| |
|
Optical Drive
| Optical Drive Type |
CD/DVD-ROM |
| |
|
Graphics Controller
| Graphic Adapter Family |
ATI ES1000 |
| Model |
Integrated ATI ES1000 |
| Maximum Graphic Adapter Memory |
32 MB |
| |
|
I/O & Networking
| Expansion Slots |
6 Expansion Slots ( three PCI Expres, three PCI-X ) |
| Network Cotroller |
Integrated Gigabit Ethernet |
| |
|
Power
| Device Type |
Hot - Plug |
| Power Supply |
Redunt Power Supply AC 120/130 V ( 50/60Hz ), 1000Watt |
| |
|
Environmental Parameters
| Min Operating Temperature |
50°F |
| Max Operating Temperature |
95°F |
| Huimdity Range Operating |
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non-condensing |
| |
|
Operating System / Software
| Operating System Installed |
Yes |
| Supporting Operating Systems |
Microsoft Windows Server 2003 All Editions, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES),
NetWare, Novell Open Enterprise Server, SuSe Linux, SCO OpenServer 6, UnixWare |
| |
|
Miscellaneous
| Features |
Power-on password, Disk configuration lock, Diskette I/O control,
Serial port I/O control,
System password,
Parallel port I/O control |
| Compilant Standards |
ACPI 2.0 |
| |
|
