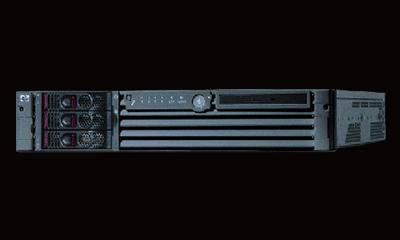

HP RX2620
HP RX2620 Full Specifications
Powered by one to two Intel Itanium 2 processors, the HP Integrity rx2620-2 Server improves price/performance in enterprise HP- UX, Linux , Microsoft Windows , or OpenVMS environments and provides a cost-effective
yet powerful entry into a technology with tremendous
growth potential.The Integrity rx2620-2 Server helps you achieve more performance, improve business processes, and manage your IT more efficiently.
It empowers technical computing users to do more simulations, do more in-depth analysis, run complex models faster, and render high-quality images with enhanced performance. Commercial computing users will run their applications with superior performance, decreased costs, and reduced complexity.
General Details
| Manufacturer |
HP |
| Model |
HP RX2620 |
| Type |
2U ( Rack Mountable ) |
| |
|
Processor / Chipset
| Processor Family |
Intel Itanium 2 |
| Processor Model |
1.6 GHz/6 MB Intel Itanium 2 |
| Maximum Number of Processors |
2 |
| Processor number of Cores |
Single Core |
| Motherboard Chipset |
HP zx1 Chipset |
| |
|
Memory / Cache Memory
| Internal Memory |
Up to 24 GB DDR266A |
| Cache Memory |
L1 32k, L2 256kB, L3 3MB Cache Memory |
| |
|
Internal / External Storage
| Hard Drives |
36 GB, 73 GB, and 146 GB drives available |
| Maximum Internal Storage |
SCSI: up to 438 GB |
| RAID Support |
N/A |
| |
|
Optical Drive
| Optical Drive Type |
CD/DVD+RW |
| |
|
Graphics Controller
| Graphic Interface |
VGA and 4 USB ports for local human interface; 2 RS-232 serial ports for general use; 2 RS-232 serial ports and 10/100Base-T LAN for
Integrated Lights Out (iLO) management; optional management processor card with integrated ATI RADEON graphics |
| |
|
I/O & Networking
| Expansion Slots |
4 full-length, 64-bit/133 MHz PCI-X slots available; 4.0 GB/s total I/O bandwidth |
| Network Cotroller |
Dual-port 10/100/1000Base-TX Ethernet |
| |
|
Power
| Power Supply |
Maximum output: 600 W |
| |
|
Environmental Parameters
| Min Operating Temperature |
41°F |
| Max Operating Temperature |
95°F |
| Huimdity Range Operating |
15% to 80% relative non-condensing |
| |
|
Operating System / Software
| Operating System Installed |
Yes |
| Supporting Operating Systems |
Microsoft Windows Operating System, Linux Operating System, OpenVMS |
| |
|
Miscellaneous
| Features |
Choice of operating systems (HP-UX 11i, Linux,
Microsoft Windows Server 2003, OpenVMS)
Consistent management tools,
P Integrated Lights Out (iLO) remote management |
| |
|
