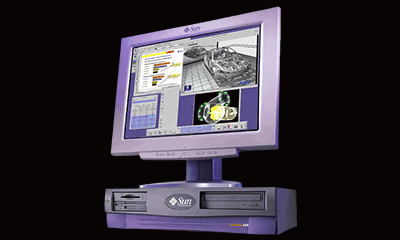

SUN BLADE 150
SUN Blade 150 Full Specifications
The Sun Blade 150 workstation is powerful, low-cost system boasts a full 64-bit architecture with the latest high-performance UltraSPARC IIi CPU, supporting up to 2 GB of
memory and up to 80 GB of internal storage. Features such as a fast PCI bus and the latest I/O technologies including USB and IEEE-1394 provide connectivity to a wide variety of latest
generation peripherals. And with graphics options that include the high resolution on-board Sun PGX64 2D graphics or high-end
Sun XVR-500 3D graphics, the Sun Blade 150 workstation delivers advanced workstation capabilities with exceptional performance at an affordable price. With only a 20% increase in megahertz, the doubling of the cache to 512 KB plus the new Sun XVR-500 graphics, the Sun Blade 150 workstation cranks up the performance. It’s up to 63% faster on compute-intensive applications and up to 76% faster in MCAD applications
General Details
| Manufacturer |
Sun Microsystems |
| Model |
Sun Blade 150 Workstation |
| Type |
Workstation |
| |
|
Processor / Chipset
| Processor Family |
Sun UltraSPARC |
| Processor Model |
Sun UltraSPARC IIIi 650 MHz |
| Processor number of Cores |
Single Core |
| |
|
Memory / Cache Memory
| Internal Memory |
Up to 2 GB SDRAM Memory |
| Memory Slots |
4 |
| Cache Memory |
L2 Cache Memory |
| Cache Memory Size |
512 kB |
| |
|
Storage
| Hard Drives Supported |
Up to 40 GB 7.2k rpm IDE HDD |
| RAID Support |
None |
| |
|
Optical Drive
| Optical Drive Type |
CD-ROM / DVD-ROM |
| |
|
Graphics Controller
| Graphic Adapter Family |
Sun PGX64 |
| Model |
On board 24-bit Sun PGX64 |
| Maximum Graphic Adapter Memory |
Up to 3 PGX64 2D graphics boards or 2 Sun XVR-500 3D graphics boards supported |
| |
|
I/O & Networking
| Expansion Slots |
3 PCI Slots |
| Network Cotroller |
Integrated GigaBit 10/100-BaseT Ethernet |
| |
|
Power
| Device Type |
Hot - Plug |
| Power |
Integrated Power Supply |
| |
|
Environmental Parameters
| Min Operating Temperature |
40° F |
| Max Operating Temperature |
95° F |
| Huimdity Range Operating |
10% to 90% relative humidity, noncondensing |
| |
|
Operating System / Software
| Operating System Installed |
Yes |
| Supporting Operating Systems |
Solaris 9, 8 |
| |
|
Miscellaneous
| Compilant Standards |
ACPI 2.0 |
| |
|
